1608640000 | Weidmüller
Protective conductor terminal, spring balancer connection, 0.5-4.0 mm², 2 pole, 300 A, 8 kV, yellow/green, 1608640000
Unit Price (€ / pc.)
4.6886 € *
Available: 40 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
4.3078 €
50 pcs.
3.9270 €
100 pcs.
3.5343 €
*incl. VAT plus shipping costs
**Subject to prior sale

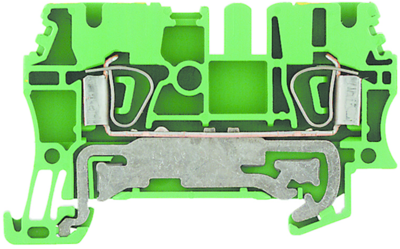

Protective conductor terminal block, 1608640000, Weidmüller
Protective conductor terminal block, spring-cage connection, 2.5 mm², 800 V, number of connections: 2, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 2 | |
| Version | protective conductor terminal | |
| AWG cross-section | AWG 30 to 12 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 5.1 mm | |
| Colour | yellow/green | |
| Height | 38.5 mm | |
| Length | 63 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Rated current | 300 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
