1683630000 | Weidmüller
Through terminal block, spring balancer connection, 0.5-6.0 mm², 2 pole, 32 A, 8 kV, gray, 1683630000
Unit Price (€ / pc.)
1.7731 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
1.77 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7731 €
10 pcs.
1.6065 €
50 pcs.
1.4399 €
*incl. VAT plus shipping costs
**Subject to prior sale

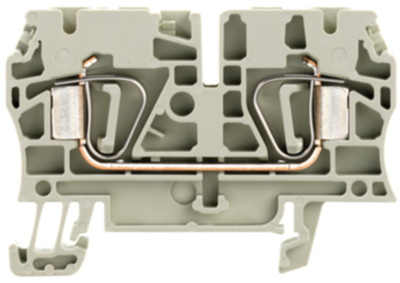

Feed-through terminal, 1683630000, Weidmüller
Feed-through modular terminal block, tension clamp connection, 4 mm², 800 V, 32 A, number of connections: 2, TS 35, gray
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Ausführung | Durchgangsklemme | |
| Anzahl der Klemmstellen | 2 | |
| Polzahl | 2-polig | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| AWG-Leiterquerschnitt | AWG 26 bis 10 | |
| Bemessungsstoßspannung | 8 kV | |
| Nennstrom | 32 A | |
| Bemessungsspannung | 800 V | |
| Verschmutzungsgrad | 3 | |
| Länge | 43 mm | |
| Breite | 6.1 mm | |
| Höhe | 62 mm | |
| Anschluss | Federzuganschluss | |
| Farbe | grau |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
