1689960000 | Weidmüller

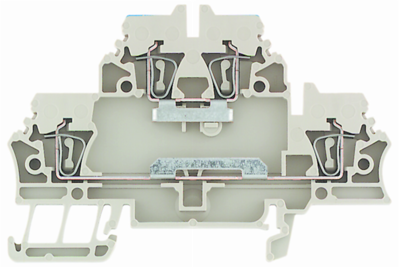

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 20 A, 6 kV, dark beige, 1689960000
Unit Price (€ / pc.)
3.9984 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
4.00 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9984 €
10 pcs.
3.6771 €
50 pcs.
3.3439 €
100 pcs.
3.0107 €
*incl. VAT plus shipping costs
**Subject to prior sale
Double-tier terminal, 1689960000, Weidmüller
Double-tier terminal block, tension clamp connection, 2.5 mm², 500 V, 20 A, number of levels: 2, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Mehrstock-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 14 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 79.5 mm | |
| Länge | 53 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennstrom | 20 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
