1690010000 | Weidmüller

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 10 A, 6 kV, dark beige, 1690010000

Order No.: 51P9010
EAN: 4008190898274
MPN:
1690010000
ZDK 2.5/LD RT/1
Series: Z-Reihe
1690010000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
6.4141 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.4141 €

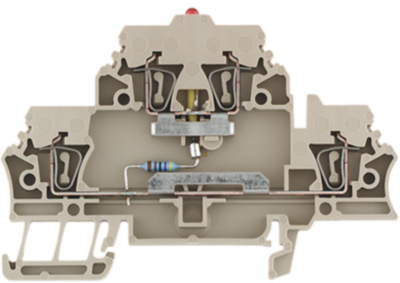

Double-tier terminal, 1690010000, Weidmüller

Double-tier terminal block, tension clamp connection, 2.5 mm², 24 V, 10 A, number of levels: 2, dark beige

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 4
Ausführung Mehrstock-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 24 V
Bemessungsstoßspannung 6 kV
Breite 5.1 mm
Farbe dunkelbeige
Höhe 79.1 mm
Länge 53 mm
Leiterquerschnitt 0,5-2,5 mm²
Nennstrom 10 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CZ
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
