1754180000 | Weidmüller

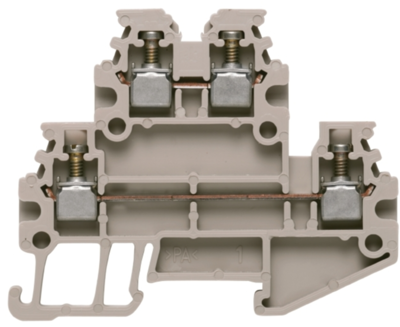

Multi level terminal block, screw connection, 0.5-1.5 mm², 16 A, 4 kV, dark beige, 1754180000

Order No.: 52P0502
EAN: 4032248020768
MPN:
1754180000
WDK 1.5/R3.5 BL
Series: W-Reihe
1754180000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
2.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.8203 €

Double-tier terminal, 1754180000, Weidmüller

Double-tier terminal block, screw connection, 1.5 mm², 400 V, 16 A, number of levels: 2, blue

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Mehrstock-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 14
Bemessungsspannung 400 V
Bemessungsstoßspannung 4 kV
Breite 3.5 mm
Farbe dunkelbeige
Höhe 46.5 mm
Länge 37.5 mm
Leiterquerschnitt 0,5-1,5 mm²
Nennstrom 16 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CZ
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
