1754960000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 32 A, 6 kV, dark beige, 1754960000

Order No.: 52P0515
EAN: 4032248054527
MPN:
1754960000
WTL 4
Series: W-Reihe
1754960000 Weidmüller Series Terminals

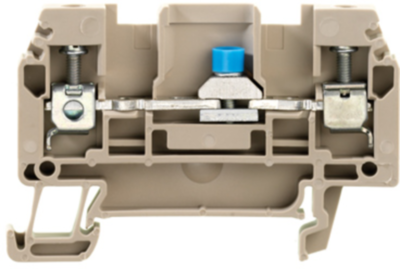

Image may differ
Unit Price (€ / pc.)
3.5819 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.5819 €

Test-disconnect terminal, 1754960000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 4 mm², 500 V, 32 A, sliding, transverse isolation: none, integrated test socket: no, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Trenn-/Messtrenn Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 10
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 6.1 mm
Farbe dunkelbeige
Höhe 61.3 mm
Länge 39.9 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 32 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CZ
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
