1771960000 | Weidmüller

Through terminal block, spring balancer connection, 0.5-6.0 mm², 2 pole, 41 A, 8 kV, dark beige, 1771960000

Order No.: 52P0875
EAN: 4032248127306
MPN:
1771960000
ZTD 6/STB
Series: Z-Reihe
1771960000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
7.2947 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
7.29 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2947 €
10 pcs.
6.7830 €
50 pcs.
6.1761 €
*incl. VAT plus shipping costs
**Subject to prior sale

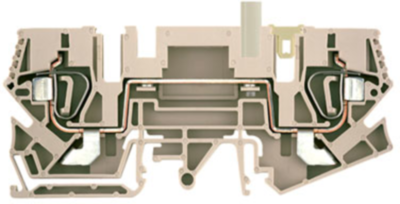

Feed-through terminal, 1771960000, Weidmüller

Feed-through terminal block, spring-cage connection, 6 mm², 800 V, 41 A, number of connections: 2, TS 35, TS 32, dark beige

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 2
Ausführung Durchgangsklemme
AWG-Leiterquerschnitt AWG 20 bis 8
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 8 mm
Farbe dunkelbeige
Höhe 106 mm
Länge 46.5 mm
Leiterquerschnitt 0,5-6,0 mm²
Nennstrom 41 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland RO
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
