1775510000 | Weidmüller
Protective conductor terminal, spring balancer connection, 0.5-1.5 mm², 2 pole, 180 A, 6 kV, yellow/green, 1775510000
Unit Price (€ / pc.)
4.4982 € *
Available: 45 pcs.
Leadtime: 6 Weeks **
Total Price:
4.50 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4982 €
10 pcs.
4.1412 €
50 pcs.
3.7723 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale

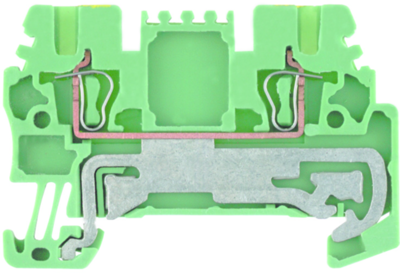

Protective conductor terminal block, 1775510000, Weidmüller
Protective conductor terminal block, spring-cage connection, 1.5 mm², 500 V, number of connections: 2, number of levels: 1, green / yellow.
Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Schutzleiter-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 30 bis 16 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 3.5 mm | |
| Farbe | gelb/grün | |
| Höhe | 36.5 mm | |
| Länge | 54.5 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennstrom | 180 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
