1775550000 | Weidmüller
Through terminal block, spring balancer connection, 0.5-1.5 mm², 3 pole, 17.5 A, 6 kV, orange, 1775550000
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.2852 €
50 pcs.
1.1662 €
*incl. VAT plus shipping costs
**Subject to prior sale

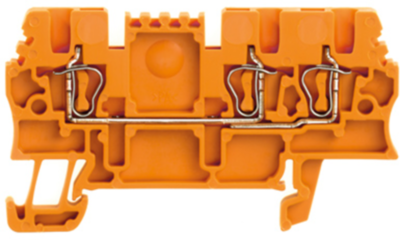

Feed-through terminal, 1775550000, Weidmüller
Feed-through terminal block, spring-cage connection, 1.5 mm², 500 V, 17.5 A, number of connections: 3, TS 35, orange
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 16 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 3.5 mm | |
| Farbe | orange | |
| Höhe | 63.5 mm | |
| Länge | 36.5 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennstrom | 17.5 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
