1783620000 | Weidmüller

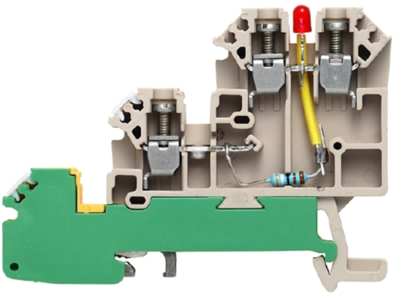

Initiator/actuator terminal block, screw connection, 0.5-4.0 mm², 17.5 A, 0.8 kV, dark beige, 1783620000
Unit Price (€ / pc.)
8.0801 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Initiator/actuator terminal
Initiator/actuator terminal, screw connection, 2.5 mm², 30 V, 17.5 A, number of connections: 3, number of potentials per tier: 1, dark beige
Initiator/actuator terminal for connecting or joining wires, cores and cables with permanently safe contact.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Initiator-/Aktor-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 30 V | |
| Bemessungsstoßspannung | 0.8 kV | |
| Breite | 6.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 48.5 mm | |
| Länge | 65 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 17.5 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
