1791010000 | Weidmüller
Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 8 kV, yellow/green, 1791010000
Unit Price (€ / pc.)
5.0694 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

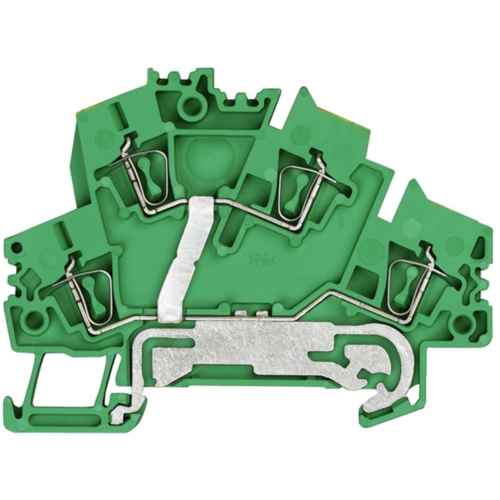

Double-tier terminal, 1791010000, Weidmüller
Double-tier terminal block, spring-cage connection, 2.5 mm², number of levels: 2, green / yellow.
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 4 | |
| Version | multi level terminal block | |
| AWG cross-section | AWG 30 to 12 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 5.1 mm | |
| Colour | yellow/green | |
| Height | 72.5 mm | |
| Length | 54.5 mm | |
| Cable cross-section | 0.5-2.5 mm² | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
