1791040000 | Weidmüller
Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 24 A, 8 kV, blue, 1791040000
Unit Price (€ / pc.)
4.6053 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

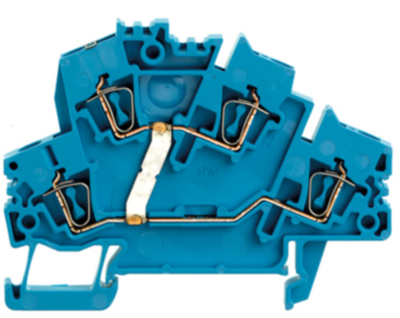

Double-tier terminal, 1791040000, Weidmüller
Double-tier terminal block, tension clamp connection, 2.5 mm², 800 V, 24 A, number of levels: 2, blue
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Mehrstock-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 30 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.1 mm | |
| Farbe | blau | |
| Höhe | 72.5 mm | |
| Länge | 54.5 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennstrom | 24 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
