1791150000 | Weidmüller
Multi level terminal block, spring balancer connection, 0.5-1.5 mm², 17.5 A, 6 kV, yellow/green, 1791150000
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: 1 Week **

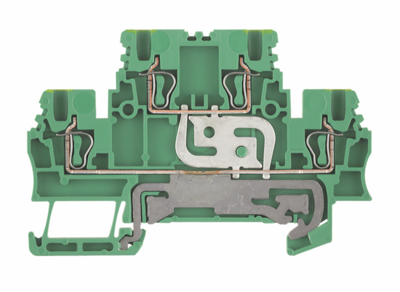

Double-tier terminal, 1791150000, Weidmüller
Double-tier terminal block, tension clamp connection, 1.5 mm², number of levels: 2, green / yellow.
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Mehrstock-Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 16 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 3.5 mm | |
| Farbe | gelb/grün | |
| Höhe | 75.5 mm | |
| Länge | 49.5 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennstrom | 17.5 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
