1802780000 | Weidmüller
Through terminal block, screw connection, 70-240 mm², 2 pole, 415 A, 8 kV, dark beige, 1802780000
Unit Price (€ / pc.)
48.9566 € *
Available: 0 pcs.
Available in 6 Days: 10 pcs.
Leadtime: On Request **
Total Price:
48.96 € *
Price list
Quantity
Price per unit*
1 pcs.
48.9566 €
10 pcs.
46.5052 €
25 pcs.
43.7206 €
50 pcs.
41.1026 €
*incl. VAT plus shipping costs
**Subject to prior sale

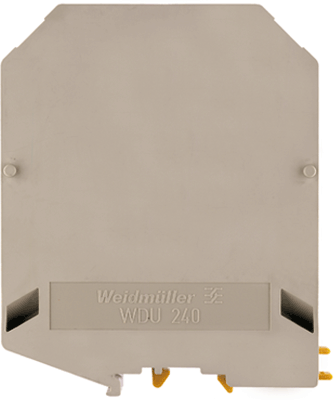

Feed-through terminal, 1802780000, Weidmüller
Feed-through modular terminal block, screw connection, 240 mm², 1000 V, 415 A, number of connections: 2, TS 32, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 36 mm | |
| Farbe | dunkelbeige | |
| Höhe | 100 mm | |
| Länge | 123.7 mm | |
| Leiterquerschnitt | 70-240 mm² | |
| Nennstrom | 415 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
