1808330000 | Weidmüller
Installation terminal block, spring balancer connection, 0.5-10 mm², 2 pole, 24 A, 6 kV, yellow/green, 1808330000
Unit Price (€ / pc.)
4.3673 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.37 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3673 €
10 pcs.
4.0579 €
50 pcs.
3.6533 €
*incl. VAT plus shipping costs
**Subject to prior sale

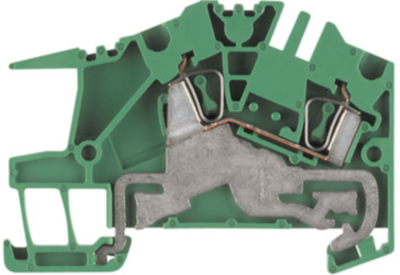

Installation multi-tier terminal, 1808330000, Weidmüller
Installation multi-tier terminal, tension clamp connection, 2.5 mm², 400 V, 24 A, number of connections: 2, number of floors: 1, number of clamping points per floor: 2.
Clamp for power distribution in the building installation.
Technical specifications
| Connection | spring balancer connection | |
| Number of terminals | 2 | |
| Version | installation terminal block | |
| AWG cross-section | AWG 26 to 14 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.1 mm | |
| Colour | yellow/green | |
| Height | 62.5 mm | |
| Length | 43.15 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Rated current | 24 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
