1815100000 | Weidmüller

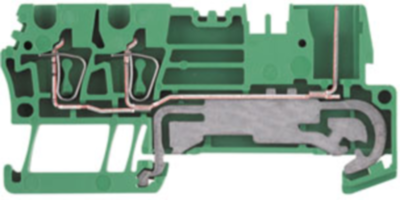

Protective conductor terminal, spring balancer connection, 0.5-4.0 mm², 3 pole, 41 A, 6 kV, yellow/green, 1815100000

Order No.: 52P2301
EAN: 4032248370016
MPN:
1815100000
ZTPE 2.5/3AN/1
Series: Z-Reihe
1815100000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.3082 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
3.31 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3082 €
10 pcs.
3.0464 €
50 pcs.
2.7727 €
100 pcs.
2.4990 €
*incl. VAT plus shipping costs
**Subject to prior sale

Protective conductor terminal block, 1815100000, Weidmüller

Protective conductor terminal block, tension clamp connection, 2.5 mm², 500 V, number of connections: 3, number of levels: 1, green / yellow.

Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Federzuganschluss
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 5.1 mm
Farbe gelb/grün
Höhe 34.5 mm
Länge 71.5 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 41 A
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland CZ
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
