1820550000 | Weidmüller
Through terminal block, screw connection, 16-120 mm², 2 pole, 269 A, 8 kV, dark beige, 1820550000
Unit Price (€ / pc.)
28.2506 € *
Available: 0 pcs.
Available in 6 Days: 25 pcs.
Leadtime: On Request **
Total Price:
28.25 € *
Price list
Quantity
Price per unit*
1 pcs.
28.2506 €
10 pcs.
25.9896 €
25 pcs.
23.9190 €
50 pcs.
21.7651 €
*incl. VAT plus shipping costs
**Subject to prior sale

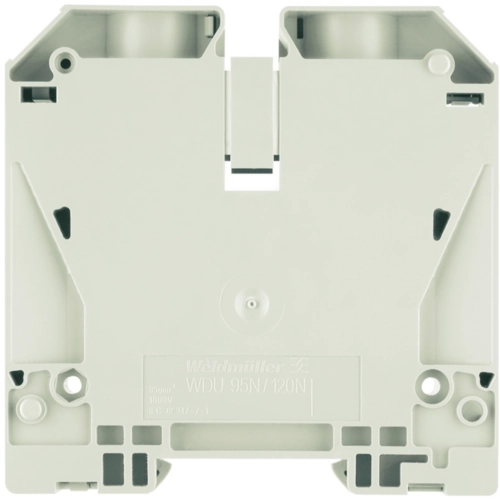

Feed-through terminal, 1820550000, Weidmüller
Feed-through modular terminal block, screw connection, 120 mm², 1000 V, 269 A, number of connections: 2, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 4 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 27 mm | |
| Colour | dark beige | |
| Height | 91 mm | |
| Length | 90 mm | |
| Cable cross-section | 16-120 mm² | |
| Rated current | 269 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
