1820850000 | Weidmüller

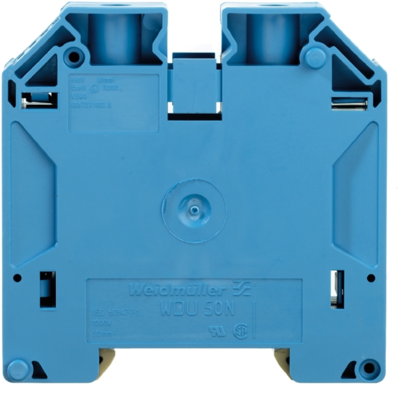

Through terminal block, screw connection, 10-50 mm², 2 pole, 150 A, 8 kV, blue, 1820850000
Unit Price (€ / pc.)
16.8623 € *
Available: 8 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **
Total Price:
16.86 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8623 €
10 pcs.
15.5057 €
50 pcs.
14.1134 €
100 pcs.
12.6973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1820850000, Weidmüller
Feed-through modular terminal block, screw connection, 50 mm², 1000 V, 150 A, number of connections: 2, TS 35, blue
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 1/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 18.5 mm | |
| Farbe | blau | |
| Höhe | 70 mm | |
| Länge | 69.5 mm | |
| Leiterquerschnitt | 10-50 mm² | |
| Nennstrom | 150 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
