1830680000 | Weidmüller

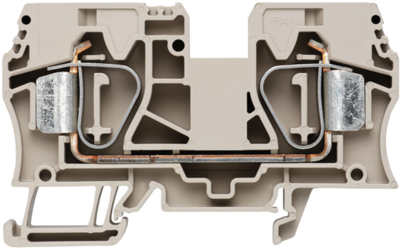

Through terminal block, spring balancer connection, 1.5-16 mm², 2 pole, 76 A, 8 kV, orange, 1830680000
Unit Price (€ / pc.)
3.4629 € *
Available: 0 pcs.
Available in 6 Days: 125 pcs.
Leadtime: On Request **
Total Price:
3.46 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4629 €
10 pcs.
3.1892 €
50 pcs.
2.9036 €
100 pcs.
2.6180 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1830680000, Weidmüller
Feed-through modular terminal block, tension clamp connection, 16 mm², 1000 V, 76 A, number of connections: 2, TS 35, orange
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Federzuganschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 14 bis 4 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 12.1 mm | |
| Farbe | orange | |
| Höhe | 82.5 mm | |
| Länge | 50.5 mm | |
| Leiterquerschnitt | 1,5-16 mm² | |
| Nennstrom | 76 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
