1833600000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-4.0 mm², 24 A, 8 kV, dark beige, 1833600000

Order No.: 52P2728
EAN: 4032248996926
MPN:
1833600000
WDK 2.5/TR-DU/o TNHE
Series: W-Reihe
1833600000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
4.2959 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
4.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2959 €

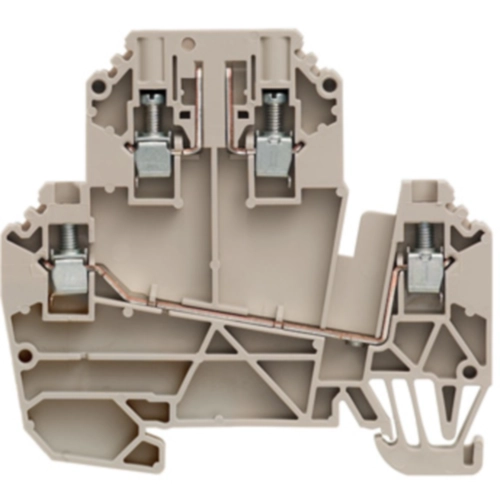

Test-disconnect terminal, 1833600000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 2.5 mm², 690 V, 24 A, without, cross disconnection: without, integrated test socket: No, TS 35, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Trenn-/Messtrenn Reihenklemme
AWG-Leiterquerschnitt AWG 30 bis 12
Bemessungsspannung 500 V
Bemessungsstoßspannung 8 kV
Breite 5.1 mm
Farbe dunkelbeige
Höhe 72.5 mm
Länge 66 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 24 A
Verschmutzungsgrad 3
Logistics
Ursprungsland RO
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
