1887210000 | Weidmüller
Disconnect/test-disconnect terminal block, screw connection, 0.5-6.0 mm², 41 A, 8 kV, dark beige, 1887210000
Unit Price (€ / pc.)
7.3661 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **

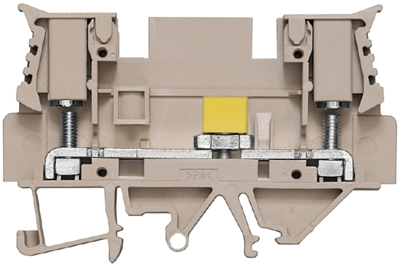

Test-disconnect terminal, 1887210000, Weidmüller
Disconnect and test-disconnect terminal block, screw connection, 6 mm², 800 V, 41 A, sliding, transverse isolation: none, integrated test socket: no, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 11 mm | |
| Farbe | dunkelbeige | |
| Höhe | 76.5 mm | |
| Länge | 52 mm | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| Nennstrom | 41 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | BR |
| Zolltarifnummer | 85369010 |
