1887220000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 6.0 mm², 41 A, 8 kV, dark beige, 1887220000

Order No.: 52P5003
EAN: 4032248526802
MPN:
1887220000
WTD 6/4 FF
Series: W-Reihe
1887220000 Weidmüller Series Terminals

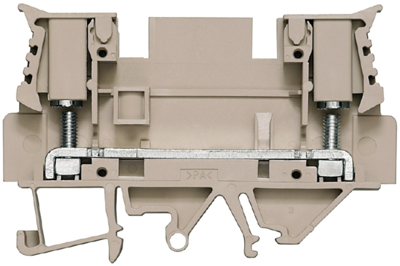

Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
4.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.3554 €

Test-disconnect terminal, 1887220000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 6 mm², 800 V, 41 A, without, cross-disconnect: without, integrated test socket: Yes, TS 35, TS 32, dark beige

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Trenn-/Messtrenn Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 12
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 11 mm
Farbe dunkelbeige
Höhe 76.5 mm
Länge 52 mm
Leiterquerschnitt 6,0 mm²
Nennstrom 41 A
Verschmutzungsgrad 3
Logistics
Ursprungsland BR
Zolltarifnummer 85369010
