1896370000 | Weidmüller
Neutral conductor modular terminal, push-in connection, 1.5-10 mm², 41 A, 8 kV, blue, 1896370000
Unit Price (€ / pc.)
4.0341 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.03 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0341 €
10 pcs.
3.7485 €
50 pcs.
3.3796 €
*incl. VAT plus shipping costs
**Subject to prior sale

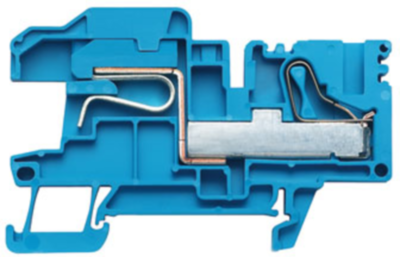

Neutral conductor terminal block, 1896370000, Weidmüller
Neutral conductor terminal block, PUSH IN, 10, 250 V, 41 A, TS 35, blue
The neutral disconnect terminal block has a longitudinal disconnect for connection to a neutral busbar. It is used to measure the insulation resistance to ground. It also enables simple testing without disconnecting the neutral conductor.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 1 | |
| Version | neutral conductor modular terminal | |
| AWG cross-section | AWG 16 to 8 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 8 kV | |
| Width | 8.1 mm | |
| Colour | blue | |
| Height | 72.5 mm | |
| Length | 46 mm | |
| Cable cross-section | 1.5-10 mm² | |
| Rated current | 41 A | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
