1905060000 | Weidmüller

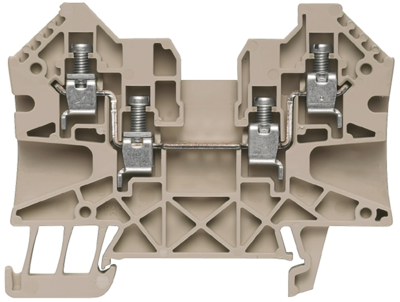

Through terminal block, screw connection, 0.5-4.0 mm², 4 pole, 32 A, 8 kV, dark beige, 1905060000
Unit Price (€ / pc.)
3.0702 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0702 €
10 pcs.
2.8322 €
50 pcs.
2.5704 €
100 pcs.
2.3205 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 1905060000, Weidmüller
Feed-through modular terminal block, screw connection, 4 mm², 800 V, 32 A, number of connections: 4, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 30 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 70 mm | |
| Länge | 53 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
