1906970000 | Weidmüller

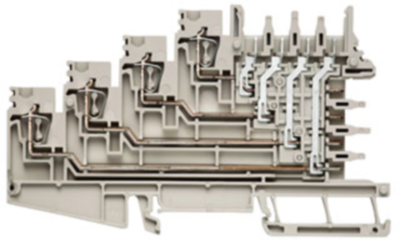

Multi level terminal block, spring balancer connection, 0.5-2.5 mm², 10 A, 4 kV, dark beige, 1906970000

Order No.: 52P5644
EAN: 4032248530731
MPN:
1906970000
ZRV 2.5/2
Series: Z-Reihe
1906970000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
8.7346 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
8.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.7346 €

Double-tier terminal, 1906970000, Weidmüller

Double-tier terminal block, pin connection, tension clamp connection, 2.5 mm², 250 V, 10 A, number of levels: 4, dark beige

Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Federzuganschluss
Anzahl der Klemmstellen 2
Ausführung Mehrstock-Reihenklemme
AWG-Leiterquerschnitt AWG 26 bis 14
Bemessungsspannung 250 V
Bemessungsstoßspannung 4 kV
Breite 5.2 mm
Farbe dunkelbeige
Höhe 115 mm
Länge 69.5 mm
Leiterquerschnitt 0,5-2,5 mm²
Nennstrom 10 A
Verschmutzungsgrad 3
Logistics
Ursprungsland CZ
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
