1934800000 | Weidmüller

Disconnect/test-disconnect terminal block, screw connection, 0.5-10 mm², 41 A, 6 kV, dark beige, 1934800000

Order No.: 52P6687
EAN: 4032248592159
MPN:
1934800000
WTQ 6/1 EN STB
Series: W-Reihe
Weidmüller
1934800000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
3.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.9270 €

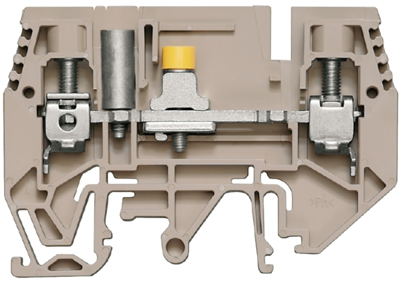

Test-disconnect terminal, 1934800000, Weidmüller

Disconnect and test-disconnect terminal block, screw connection, 6 mm², 500 V, 41 A, without, transverse isolation: sliding, integrated test socket: No, TS 35, TS 32.

The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.

Technical specifications
Connection screw connection
Number of terminals 2
Version disconnect/test-disconnect terminal block
AWG cross-section AWG 20 to 8
Rated Voltage 500 V
Rated surge voltage 6 kV
Width 7.9 mm
Colour dark beige
Height 65 mm
Length 47.5 mm
Cable cross-section 0.5-10 mm²
Rated current 41 A
Degree of soiling 3
Logistics
Country of origin RO
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
