1968950000 | Weidmüller

Bolt terminal, bolt connection, 120 mm², 1 pole, 269 A, 8 kV, dark beige, 1968950000

Order No.: 52P8292
EAN: 4032248702862
MPN:
1968950000
WF 10 NFF
1968950000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
11.186 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
11.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.186 €

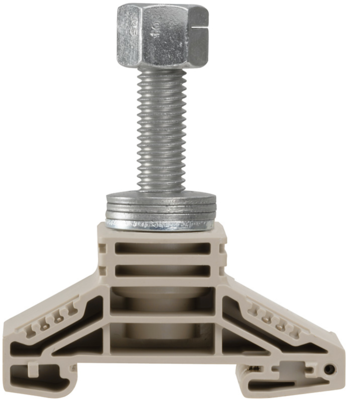

Bolt clamp, 1968950000, Weidmüller

Bolt clamp, bolt connection, 120 mm², 1000 V, 269 A, number of connections: 1, M 10, TS 35, dark beige

Clamp with threaded bolt for the transmission of energy. The conductors are connected to the threaded bolt with crimped cable lugs.

Technical specifications
Anschluss Bolzenanschluss
Anzahl der Klemmstellen 1
Ausführung Bolzenklemme
Bemessungsspannung 1000 V
Bemessungsstoßspannung 8 kV
Breite 33.8 mm
Farbe dunkelbeige
Höhe 67 mm
Länge 72.5 mm
Leiterquerschnitt 120 mm²
Nennstrom 269 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland RO
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
