1988200000 | Weidmüller

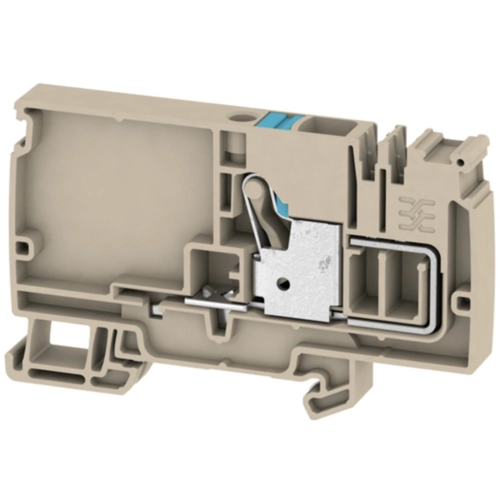

Supply terminal, push-in connection, 0.5-10 mm², 57 A, 8 kV, dark beige, 1988200000
Unit Price (€ / pc.)
9.2106 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
9.21 € *
Price list
Quantity
Price per unit*
1 pcs.
9.2106 €
10 pcs.
8.5680 €
50 pcs.
7.7826 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-in terminal, 1988200000, Weidmüller
Power terminal block, PUSH IN, 10 mm², 800 V, number of potentials per level: 1, TS 35, dark beige, color of actuating elements: blue
Power terminal for potential distribution with uniform cross-connection channels.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | Einspeiseklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 10 mm | |
| Farbe | dunkelbeige | |
| Höhe | 89 mm | |
| Länge | 53.5 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 57 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
