1988230000 | Weidmüller

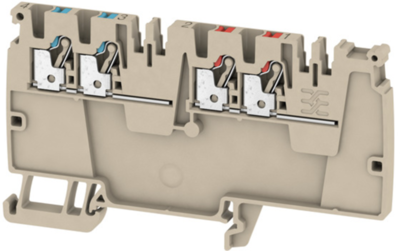

Potential distribution terminal, push-in connection, 0.5-2.5 mm², 4 pole, 24 A, 6 kV, dark beige, 1988230000
Unit Price (€ / pc.)
4.2721 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
4.27 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2721 €
10 pcs.
3.9389 €
50 pcs.
3.5819 €
100 pcs.
3.2249 €
*incl. VAT plus shipping costs
**Subject to prior sale
Potential distributor terminal, 1988230000, Weidmüller
Potential distribution terminal, PUSH IN, 2.5, 500 V, 24 A, number of connections: 4, TS 35, dark beige, color of actuating elements: red / blue
Terminal for potential distribution with a high contact density.
Technical specifications
| Version | Potentialverteilerklemme | |
| Number of terminals | 4 | |
| Pin number | 4-polig | |
| Cable cross-section | 0,5-2,5 mm² | |
| AWG cross-section | AWG 28 bis 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 24 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 53.5 mm | |
| Width | 5.1 mm | |
| Height | 94 mm | |
| Connection | Push-in-Anschluss | |
| Colour | dunkelbeige |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
