1989800000 | Weidmüller
Disconnect/test-disconnect terminal block, push-in connection, 0.5-2.5 mm², 20 A, 6 kV, dark beige, 1989800000
Unit Price (€ / pc.)
3.5343 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
3.53 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5343 €
10 pcs.
3.2487 €
50 pcs.
2.9512 €
100 pcs.
2.6656 €
*incl. VAT plus shipping costs
**Subject to prior sale

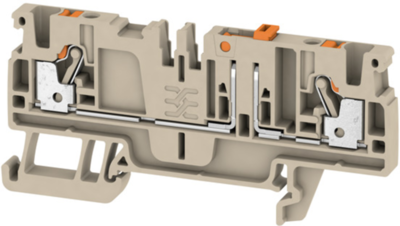

Test-disconnect terminal, 1989800000, Weidmüller
Disconnect and Test Disconnect Terminal Block, PUSH IN, 2.5 mm², 500 V, 20 A, rotatable, cross disconnect: without, integrated test socket: Yes, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 77.5 mm | |
| Länge | 37.65 mm | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennstrom | 20 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
