1989910000 | Weidmüller

Through terminal block, push-in connection, 0.5-2.5 mm², 2 pole, 24 A, 8 kV, blue, 1989910000

Order No.: 52P9117
EAN: 4050118374469
MPN:
1989910000
A2C 2.5 /DT/FS BL
Series: A-Reihe
Weidmüller
1989910000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
1.6660 € *
Available: 60 pcs.
Leadtime: 2 Weeks **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.5351 €
50 pcs.
1.3923 €
100 pcs.
1.2495 €
*incl. VAT plus shipping costs
**Subject to prior sale

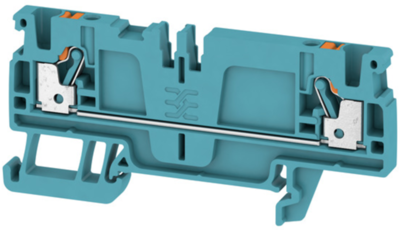

Feed-through terminal, 1989910000, Weidmüller

Feed-through modular terminal block, PUSH IN, 2.5 mm², 800 V, 24 A, number of connections: 2, TS 35, blue

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection push-in connection
Number of terminals 2
Version through terminal block
AWG cross-section AWG 28 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 5.1 mm
Colour blue
Height 77.5 mm
Length 36.5 mm
Cable cross-section 0.5-2.5 mm²
Rated current 24 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
