1991850000 | Weidmüller

Protective conductor terminal, push-in connection, 0.5-6.0 mm², 3 pole, 8 kV, yellow/green, 1991850000

Order No.: 52P9167
EAN: 4050118376531
MPN:
1991850000
A3C 6 PE
Series: A-Reihe
1991850000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
5.0337 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: 1 Week **
Total Price:
5.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.0337 €

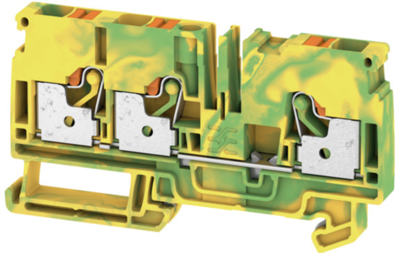

Protective conductor terminal block, 1991850000, Weidmüller

Protective conductor terminal block, PUSH IN, 6 mm², 800 V, number of connections: 3, number of levels: 1, green / yellow, orange

Clamp with protective conductor contact for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Push-in-Anschluss
Anzahl der Klemmstellen 3
Ausführung Schutzleiter-Reihenklemme
AWG-Leiterquerschnitt AWG 22 bis 8
Bemessungsspannung 800 V
Bemessungsstoßspannung 8 kV
Breite 8.1 mm
Farbe gelb/grün
Höhe 45.5 mm
Länge 84.5 mm
Leiterquerschnitt 0,5-6,0 mm²
Polzahl 3-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
