2051230000 | Weidmüller

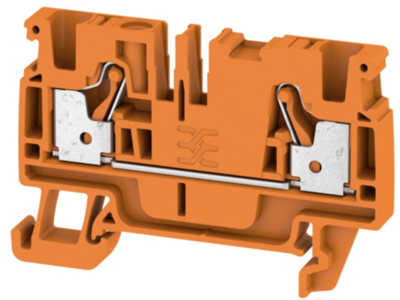

Through terminal block, push-in connection, 0.5-4.0 mm², 2 pole, 32 A, 8 kV, orange, 2051230000
Unit Price (€ / pc.)
1.3447 € *
Available: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2138 €
50 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal, 2051230000, Weidmüller
Feed-through terminal block, PUSH IN, 4 mm², 800 V, 32 A, number of connections: 2, TS 35, orange
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.1 mm | |
| Farbe | orange | |
| Höhe | 60 mm | |
| Länge | 39.5 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
