2428950000 | Weidmüller

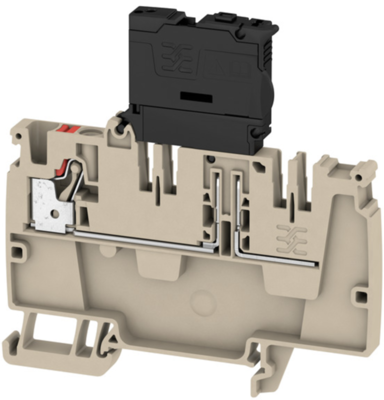

Through terminal block, push-in connection, 0.5-4.0 mm², 1 pole, 6.3 A, 4 kV, dark beige, 2428950000
Unit Price (€ / pc.)
4.4387 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Feed-through terminal, 2428950000, Weidmüller
Feed-through modular terminal block, PUSH IN, 4 mm², 250 V, 6.3 A, number of connections: 1, TS 35, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 82 mm | |
| Länge | 82 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 6.3 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
