2429000000 | Weidmüller

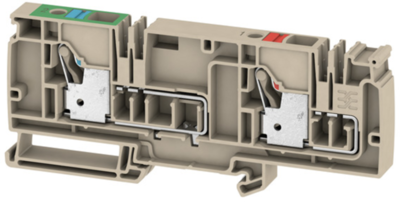

Supply terminal, push-in connection, 0.5-10 mm², 17 A, 4 kV, dark beige, 2429000000
Unit Price (€ / pc.)
10.7457 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
10.75 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7457 €
10 pcs.
9.9841 €
50 pcs.
9.0797 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-in terminal, 2429000000, Weidmüller
Power terminal block, PUSH IN, 10 mm², 250 V, 17 A, number of potentials per level: 2, TS 35, dark beige, color of actuating elements: red / blue
Power terminal for potential distribution with uniform cross-connection channels.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Einspeiseklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 12 mm | |
| Farbe | dunkelbeige | |
| Höhe | 129 mm | |
| Länge | 53.5 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 17 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
