2429850000 | Weidmüller

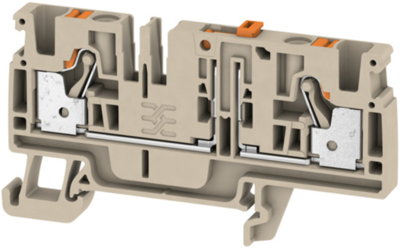

Disconnect/test-disconnect terminal block, push-in connection, 0.5-4.0 mm², 20 A, 4 kV, dark beige, 2429850000
Unit Price (€ / pc.)
4.3078 € *
Available: 45 pcs.
Available in 6 Days: 250 pcs.
Leadtime: 2 Weeks **
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
10 pcs.
3.9627 €
50 pcs.
3.6057 €
100 pcs.
3.2368 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test-disconnect terminal, 2429850000, Weidmüller
Disconnect and Test Disconnect Terminal Block, PUSH IN, 4 mm², 500 V, 24 A, rotatable, cross disconnect: none, integrated test socket: yes, TS 35, dark beige
The test disconnect terminal block is used to disconnect circuits for test and measurement purposes.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Trenn-/Messtrenn Reihenklemme | |
| AWG-Leiterquerschnitt | AWG 26 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 6.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 74 mm | |
| Länge | 41 mm | |
| Leiterquerschnitt | 0,5-4,0 mm² | |
| Nennstrom | 20 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
