2502570000 | Weidmüller
Potential distribution terminal, screw connection, 50 mm², 1 pole, 150 A, 8 kV, black, 2502570000
Unit Price (€ / pc.)
6.5569 € *
Available: 0 pcs.
Available in 6 Days: 45 pcs.
Leadtime: On Request **
Total Price:
6.56 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5569 €
10 pcs.
6.1047 €
50 pcs.
5.5454 €
*incl. VAT plus shipping costs
**Subject to prior sale

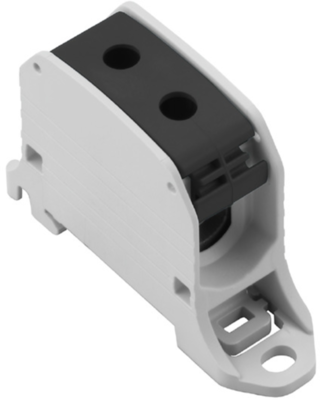

Potential distributor terminal, 2502570000, Weidmüller
Potential distribution terminal, 50, 1000 V, number of poles: 1, TS 35, black
Terminal for potential distribution with a high contact density.
Technical specifications
| Connection | screw connection | |
| Number of terminals | 2 | |
| Version | potential distribution terminal | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 20 mm | |
| Colour | black | |
| Height | 70 mm | |
| Length | 45 mm | |
| Cable cross-section | 50 mm² | |
| Rated current | 150 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
