2502660000 | Weidmüller
Potential distribution terminal, screw connection, 95 mm², 1 pole, 232 A, 8 kV, blue, 2502660000
Unit Price (€ / pc.)
13.2328 € *
Available: 0 pcs.
Available in 6 Days: 10 pcs.
Leadtime: On Request **
Total Price:
13.23 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2328 €
10 pcs.
12.1737 €
50 pcs.
11.0789 €
100 pcs.
9.9722 €
*incl. VAT plus shipping costs
**Subject to prior sale

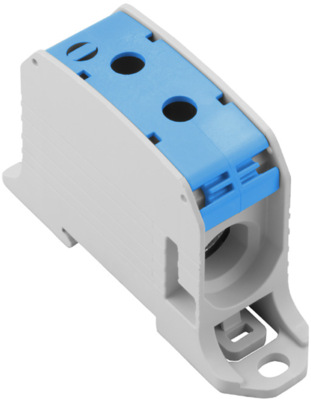

Potential distributor terminal, 2502660000, Weidmüller
Potential distribution terminal, 95, 1000 V, no. of poles: 1, TS 35, blue
Terminal for potential distribution with a high contact density.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Potentialverteilerklemme | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 25.5 mm | |
| Farbe | blau | |
| Höhe | 93 mm | |
| Länge | 57 mm | |
| Leiterquerschnitt | 95 mm² | |
| Nennstrom | 232 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
