2502780000 | Weidmüller
Potential distribution terminal, screw connection, 185 mm², 1 pole, 353 A, 8 kV, brown, 2502780000
Unit Price (€ / pc.)
26.2990 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
26.30 € *
Price list
Quantity
Price per unit*
1 pcs.
26.2990 €
10 pcs.
24.1927 €
25 pcs.
22.2530 €
50 pcs.
20.2538 €
*incl. VAT plus shipping costs
**Subject to prior sale

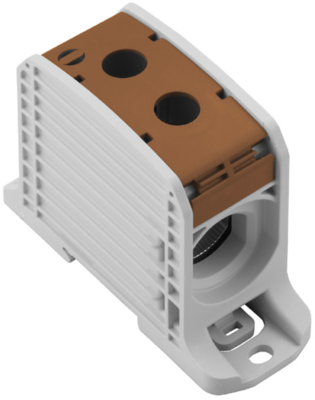

Potential distributor terminal, 2502780000, Weidmüller
Potential distribution terminal, 185, 1000 V, no. of poles: 1, TS 35, brown
Terminal for potential distribution with a high contact density.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Potentialverteilerklemme | |
| AWG-Leiterquerschnitt | AWG 14 bis 4 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 37.5 mm | |
| Farbe | braun | |
| Höhe | 105 mm | |
| Länge | 73.5 mm | |
| Leiterquerschnitt | 185 mm² | |
| Nennstrom | 353 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | IN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
