2503650000 | Weidmüller
Supply terminal, push-in connection, 0.5-6.0 mm², 41 A, 6 kV, dark beige, 2503650000
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Available in 6 Days: 100 pcs.
Leadtime: On Request **
Total Price:
3.20 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2011 €
10 pcs.
2.9631 €
50 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale

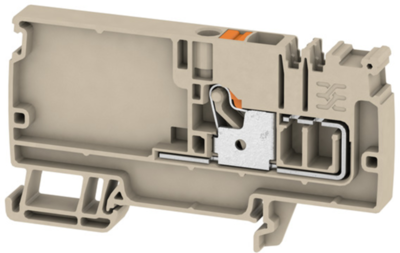

Feed-in terminal, 2503650000, Weidmüller
Power terminal block, PUSH IN, 6 mm², 500 V, 41 A, number of potentials per level: 1, TS 35, dark beige, color of actuating elements: orange
Power terminal for potential distribution with uniform cross-connection channels.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | Einspeiseklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 8 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 8.1 mm | |
| Farbe | dunkelbeige | |
| Höhe | 85.5 mm | |
| Länge | 47 mm | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| Nennstrom | 41 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
