9501160000 | Weidmüller

Through terminal block, screw connection, 0.5-4.0 mm², 2 pole, 32 A, 6 kV, beige/yellow, 9501160000

Order No.: 53P7143
EAN: 4008190549534
MPN:
9501160000
RSF 3/35
Series: SAK-Reihe
9501160000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
11.5668 € *
Available: 0 pcs.
Available in 6 Days: 250 pcs.
Leadtime: On Request **
Total Price:
11.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.5668 €

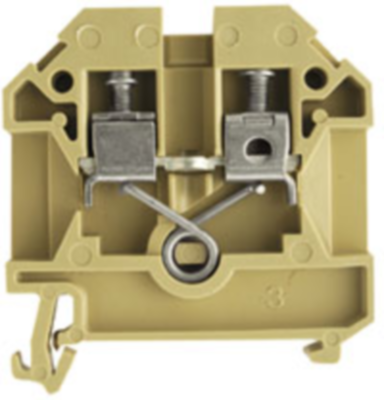

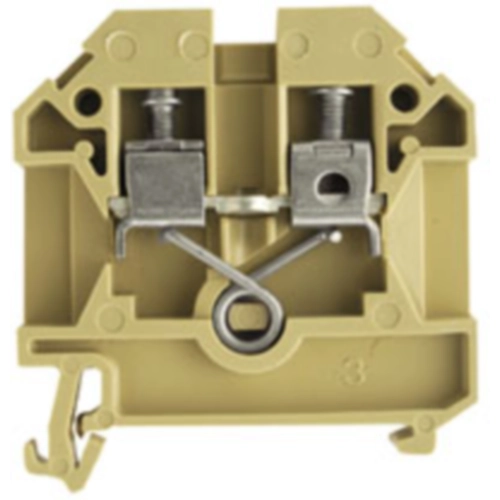

Feed-through terminal, 9501160000, Weidmüller

Feed-through modular terminal block, screw connection, 4 mm², 690 V, 32 A, number of connections: 2, TS 35, beige/yellow.

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Anschluss Schraubanschluss
Anzahl der Klemmstellen 2
Ausführung Durchgangsklemme
Bemessungsspannung 690 V
Bemessungsstoßspannung 6 kV
Breite 8 mm
Farbe beige/gelb
Höhe 50 mm
Länge 60 mm
Leiterquerschnitt 0,5-4,0 mm²
Nennstrom 32 A
Polzahl 2-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland RO
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
