9005000000 | Weidmüller
Stripping pliers for PVC-coated cables, 0.08-10 mm², AWG 28-10, L 190 mm, 175 g, 9005000000
Unit Price (€ / pc.)
77.2905 € *
Available: 13 pcs.
Leadtime: 2 Weeks **

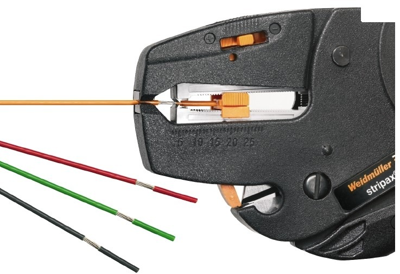

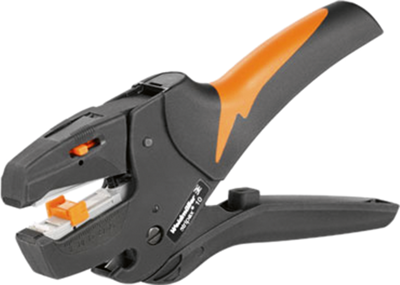

Weidmüller Stripax wire stripper 9005000000
For cutting (up to 6.0 mm²) and damage-free stripping of solid and fine wire conductors with PVC insulation in the range from 0.08 to 10 mm² (AWG 28 to 10), linear adjustment of the insulation thickness, automatic self-adjusting function.
Features
- Stripping tools with automatic self-adjustment
- Stripping length adjustable via end stop
- Automatic opening of clamping jaws after stripping
- Adjustable to diverse insulation thicknesses
- For flexible and solid conductors
Applications
- Mechanical and plant engineering
- Railway and rail traffic
- Wind energy
- Robot technology
- Explosion protection
Technical specifications
| Abisolierlänge | 25 mm | |
| Ausführung | Abisolierzange | |
| AWG-Leiterquerschnitt | AWG 28-10 | |
| Geeignet für | Leiter mit PVC-Isolation | |
| Gewicht | 175 g | |
| Länge | 190 mm | |
| Leiterquerschnitt | 0,08-10 mm² | |
| VDE-/1000V-geprüft | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 82032000 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
