9046240000 | Weidmüller

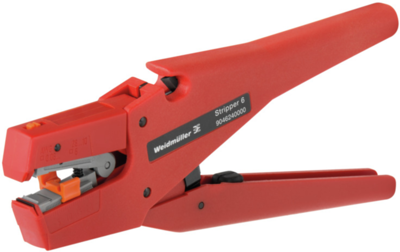

Stripping pliers for Flexible cables, 0.08-6.0 mm², AWG 28-10, L 200 mm, 201 g, 9046240000

Order No.: 53P6136
EAN: 4032248298648
MPN:
9046240000
STRIPPER 6
Series: STRIPPER
9046240000 Weidmüller Stripping Pliers, Stripping Tools
Image may differ
Unit Price (€ / pc.)
134.0416 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
134.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
134.0416 €

Stripping tool, 9046240000, WEIDMÜLLER

Stripping tool with automatic self-adjustment for precise and fast stripping of conductors, Wires up to 6 mm² / with integrated cable cutter.

Features

  • Stripping tools with automatic self-adjustment
  • Stripping length adjustable via end stop
  • Automatic opening of clamping jaws after stripping
  • Adjustable to diverse insulation thicknesses
  • For flexible and solid conductors

Applications

  • Mechanical and plant engineering
  • Railway and rail traffic
  • Wind energy
  • Robot technology
  • Explosion protection
Technical specifications
Abisolierlänge 20 mm
Ausführung Abisolierzange
AWG-Leiterquerschnitt AWG 28-10
Geeignet für flexible Kabel
Gewicht 201 g
Länge 200 mm
Leiterquerschnitt 0,08-6,0 mm²
VDE-/1000V-geprüft No
Logistics
Ursprungsland DE
Zolltarifnummer 82032000
Compliance
RoHS konform not_relevant
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
