9918870000 | Weidmüller
Voltage tester, Weidmuller Digi-Check Pro, 9918870000
Unit Price (€ / pc.)
102.3757 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **

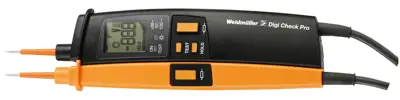

Voltage testers with LCD, type Weidmüller Digi-Check Pro.
Non-contact voltage tester for DC and AC voltages from 0.3 to 690 V AC/DC, with polarity indication, continuity check, single-pole phase test, single-hand operation, probe lighting, Hold function, phase sequence display, switched burden, 30 mA RCD tripping via pushbutton and LCD; Peak withstand voltage: 8.0 kV. Operating temperatures: –15 to +45 °C. Degree of protection: IP 65. Certifications: to EN/IEC 61243-3 or VDE 0682 part 401. Dimensions: L 287, B 68, H 23 mm. Weight: 290 g. Operation: 2 batteries, 1.5 V Micro (included).
Type: Digi-Check Pro, voltage tester
Technical specifications
| Display | LCD | |
| Version | voltage tester | |
| Rated category | CAT III, CAT IV | |
| Degree of protection (IP) | IP65 | |
| max. voltage measuring range (AC) | 1000 V | |
| max. voltage measuring range (DC) | 1000 V |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
