9025720000 | Weidmüller

Insulated wire end ferrule, 1.5 mm², 14 mm/8 mm long, DIN 46228/4, red, 9025720000

Order No.: 53P5955
EAN: 4008190072681
MPN:
9025720000
H1,5/14S R SV
Series: H
Weidmüller
9025720000 Weidmüller Wire-end Ferrules Image 1
9025720000 Weidmüller Wire-end Ferrules Image 2
Image may differ
Unit Price (€ / pc.)
0.0559 € *
Available: 0 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: 1 Week **
Total Price:
0.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
0.0559 €

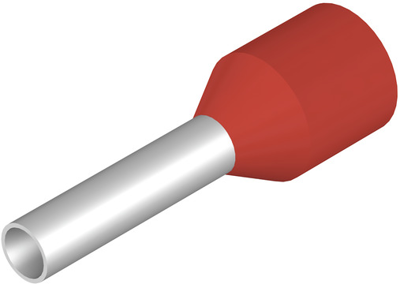

Ferrule, 9025720000, Weidmüller

Wire-end ferrule, insulated, 1.5 mm², collar diameter (D2): 3.9 mm, stripping length: 10 mm, contact area diameter (D1): 1.7 mm, 8 mm, red

By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.

Technical specifications
Colour red
Material Insulation polypropylene
Isolated Yes
Contact material copper
Length 14 mm
Cable cross-section 1.5 mm²
max. operating temperature 105 °C
Standard number DIN 46228/4
Pin lenght 8 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
