9036330000 | Weidmüller
Insulated wire end ferrule, 1.0 mm², 22 mm/14 mm long, DIN 46228/4, red, 9036330000
Unit Price (€ / pc.)
0.2118 € *
Available: 0 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: On Request **

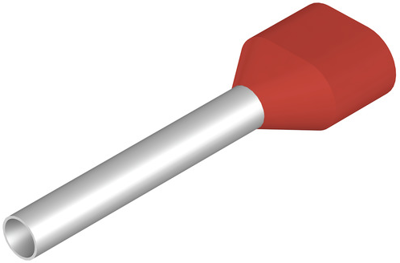

Ferrule, 9036330000, Weidmüller
Wire-end ferrule, twin wire-end ferrule, 1 mm², stripping length: 21 mm, contact area diameter (D1): 2 mm, red.
By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.

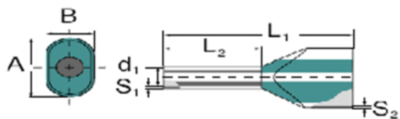

Technical specifications
| Colour | red | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 22 mm | |
| Cable cross-section | 1.0 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 14 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
