9202830000 | Weidmüller

Insulated wire end ferrule, 0.75 mm², 18 mm/12 mm long, DIN 46228/4, gray, 9202830000

Order No.: 53P6293
EAN: 4032248515776
MPN:
9202830000
H0,75/19DS ZH GR
Series: H
Weidmüller

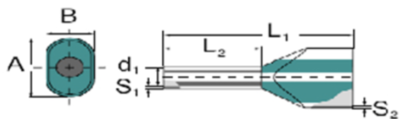

9202830000 Weidmüller Wire-end Ferrules Image 1

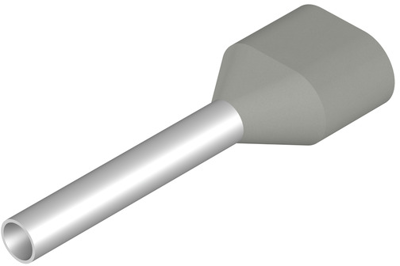

9202830000 Weidmüller Wire-end Ferrules Image 2
Image may differ
Unit Price (€ / pc.)
0.2071 € *
Available: 0 pcs.
Available in 6 Days: 2,500 pcs.
Leadtime: On Request **
Total Price:
0.21 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 pcs.
0.2071 €

Ferrule, 9202830000, Weidmüller

Wire-end ferrule, twin wire-end ferrule, 0.75 mm², stripping length: 21 mm, contact area diameter (D1): 1.7 mm, 12 mm, gray, DIN.

By using the wire end ferrule, the individual strands of a stripped, flexible conductor are securely crimped through a galvanically tinned copper tube. The use of the ferrule creates long-term consistent quality in electrical connections.

Technical specifications
Colour gray
Material Insulation polypropylene
Isolated Yes
Contact material copper
Length 18 mm
Cable cross-section 0.75 mm²
max. operating temperature 105 °C
Standard number DIN 46228/4
Pin lenght 12 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
