MG100S KIT1 | Weller
WELLER solder fume extraction for up to 2 workstations, with funnel, MG 100S KIT1
Unit Price (€ / pc.)
2,011.10 € *
Available: 0 pcs.
Leadtime: 1 Week **

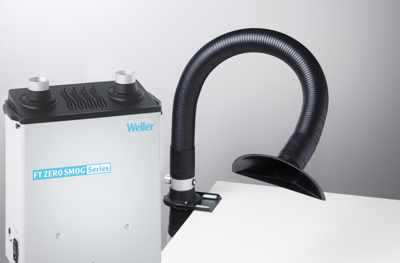

Fume extraction unit, 100-1056-ESDN, WELLER
The MG 100S kit 1 will be delivered with flexible extrcation arm 1 meter, funnel nozzle and valve. The fume extraction unit is suitable for applications with a high demand of gases. Variable speed and alarm function for filter exchange can be set via the remote control. To make installation easier, the MG 100S can be suspended at the work table with special table mounting set.
Features
- High gas-filter volume
- Electronic filter control with filter alarm
- Variable speed setting
- Minimized foot print
- Switching power supply 100 – 240 V
Technical specifications
| Width | 210 mm | |
| Height | 610 mm | |
| Length | 460 mm | |
| Power | 100 W | |
| Sound pressure level | 52 db | |
| Voltage | 100-240 V | |
| Volume flow | 140 m³/h |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 84213925 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
