WELLER solder fume extraction ZERO SMOG 4V extraction with gas filter
Order No.: 10L5050
EAN: 4003019426508
MPN:
ZERO SMOG 4V 230 V F + GAS FILTER
T0053661699N
Series: ZERO SMOG
Unit Price (€ / pc.)
2,212.21 € *
Available: 0 pcs.
Leadtime: 1 Week **

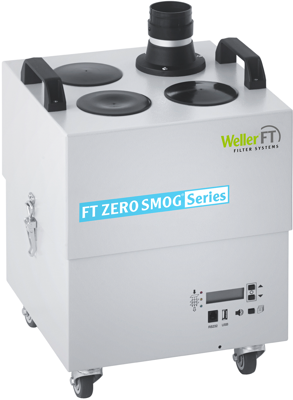

Fume extraction unit, T0053661699N, WELLER
The fume extraction unit zero smog 4 V is adapt with a wide band gasfilter to exhaust adhesive fume at glueing applications. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m³/h. With setting constant flow control the adjustable turbine speed avoiding unnecessary waste of suction power and saving energy.
Features
- Constant Flow Control (CFC) guarantees automatical air flow regulation for each working place independent of the connected work-places
- Electronic filter control with optical and acoustical filter alarm
- Efficiency test via USB port
- 4 casters to allow easy movement of the unit
- Low noise level
Technical specifications
Breite | 325 mm | |
Höhe | 505 mm | |
Länge | 345 mm | |
Leistung | 275 W | |
Schalldruckpegel | 48 db | |
Spannung | 230 V | |
Volumenstrom | 230 m³/h |
Download
Logistics
Ursprungsland | HU |
Zolltarifnummer | 84213925 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
