ZERO SMOG 4V 230V F/G KIT1 FUNNEL | Weller

WELLER solder fume extraction ZERO SMOG 4V 230V F/G KIT1 funnel

Order No.: 10L5052
EAN: 4003019426461
MPN:
ZERO SMOG 4V 230V F/G KIT1 FUNNEL
T0053662699N
Series: ZERO SMOG
ZERO SMOG 4V 230V F/G KIT1 FUNNEL Weller Fume Extraction
Image may differ
Unit Price (€ / pc.)
2,612.05 € *
Available: 1 pcs.
Leadtime: 1 Week **
Total Price:
2,612.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,612.05 €

Fume extraction kit, T0053662699N, WELLER

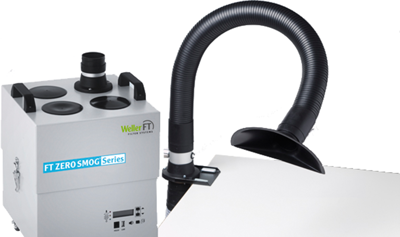

The fume extraction unit zero smog 4 V kit 1 funnel is easy to install and operate. It is designed for use as a small central system. The kit is supplied complete with flexible hose, flexarm, funnel nozzle, valve and bracket, ready for installation at the workplace. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 230 m³/h. With setting constant flow control the adjustable turbine speed avoiding unnecessary waste of suction power and saving energy. Energy-efficient fume extraction system purifies air at up to 4 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench.

Features

  • Equipped with HEPA H13 particle filter and fine dust pre-filter F7
  • Constant Flow Control (CFC) guarantees automatic air flow regulation for each working place independent of the connected work-places
  • Electronic filter control with optical and acoustical filter alarm
  • Low noise level
  • Remote control via RS 232 port
Technical specifications
Power 275 W
Voltage 220-240 V
Volume flow 230 m³/h
Sound pressure level 48 db
Length 345 mm
Width 325 mm
Height 505 mm
Logistics
Country of origin HU
Customs tariff number 84213925
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
